iPod or USB adapter installation into Toyota: Toyota Camry 2009
Below are the general guidelines for connecting GROM-IPOD or GROM-USB interface to the Toyota car stereo. This particular car is Toyota Camry 2009. Our posted car stereo removal instructions help with aftermarket adaptor install projects, iPod, XM, USB, Sirius, MP3, Bluetooth, video or audio when you need to reach to the back of the Toyota stereo for the installation.
Disclaimer: We are not liable for any damages acquired during your installation process. If you are not sure in your ability to perform the installation please seek the help of the professional.
Turn off the car ignition.

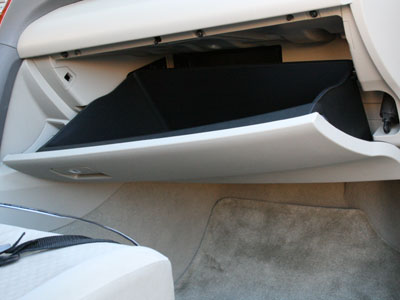

Locate the glove box, open it. You will see the screws that connect glove box cover to its compartment.

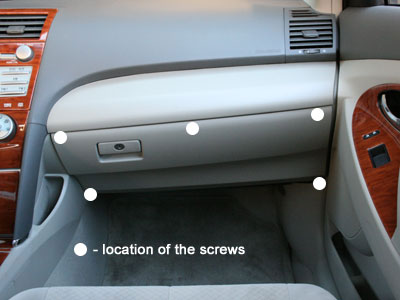

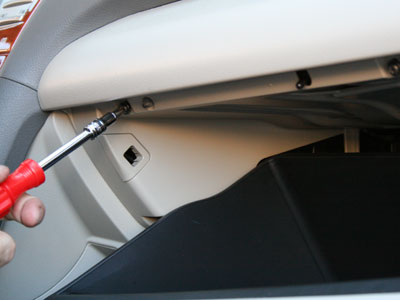

Take the Phillips screwdriver, unscrew 4 screws (3 on top and 1 at the left side underneath the glovebox).
Place screws in the secure place and be careful not to loose them.

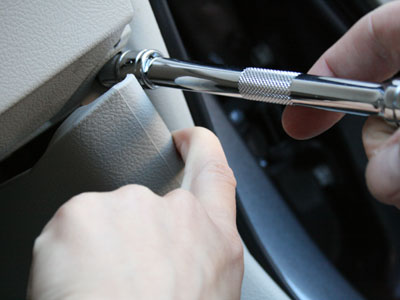

Slightly pull out the right lower corner of the plastic cover underneath the glovebox, find the last hex screw (10mm)
Unscrew that screw with the 10 mm wrench

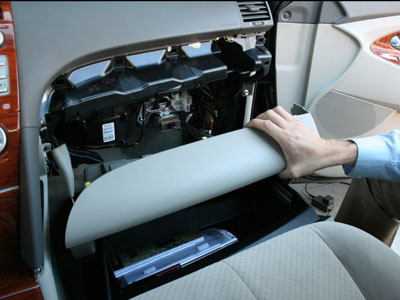

Carefully remove the glove box

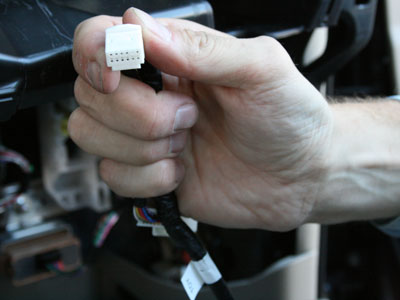

Take the TOY cable. Locate the end that goes to the car stereo as shown. Make sure the flat side is up !
Lead the TOY cable through the hole in the dashboard. Connect the TOY harness to the stereo.
You will need to find the right socket by feeling, please refer to the picture below.
The socket that you need is the second from the right at the back of the stereo.
Note: If the socket is occupied, please disconnect the existing harness and connect the TOY cable.
Reconnect the disconnected harness back to the stereo using female end of the Y-shaped TOY harness.*

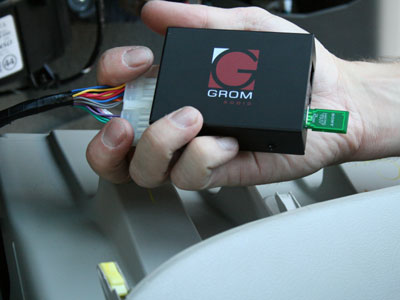

Connect the GROM-USB or iPod adapter to the other end of the TOY harness; test the functionality of the adapter before assembling back the glovebox.
You can try it with USB stick provided in your package. Please don't forget to place your favorite tunes on the USB stick and create directories as explained in the Manual.
Turn on ignition, then stereo and press "Disk / AUX". Stereo will recognize GROM adapter immediately (you may need to press 2 times when built in CD is active)

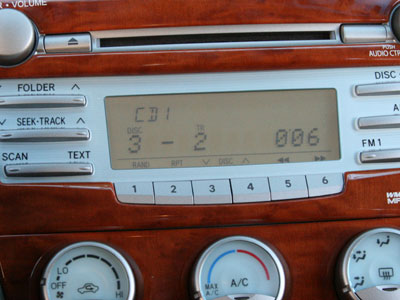

You should see Disk 1 Track 1 on the stereo screen. If you don't see anything - please refer to the troubleshooting section of your manual.

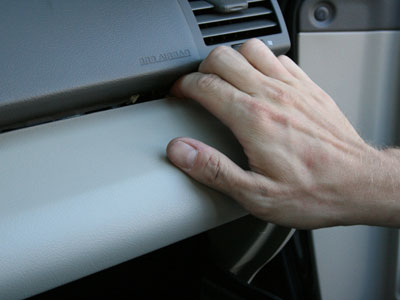

If everything is working as it should, disconnect the GROM box from the TOY harness. Carefully place the glovebox back until it snaps to its place, and lead the TOY harness through the hole inside to the glovebox.
Put all the screws back to the original location.

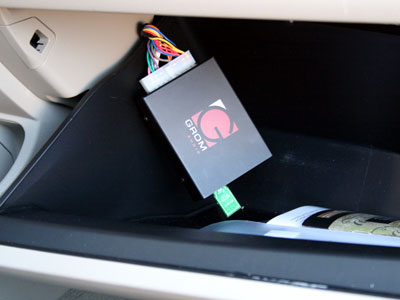

Connect GROM box to TOY harness and leave it inside of the glovebox. You can start using your GROM USB, iPod or AUX car adapter now!
Please make sure that everything that you unplug from the car stereo is connected back!
